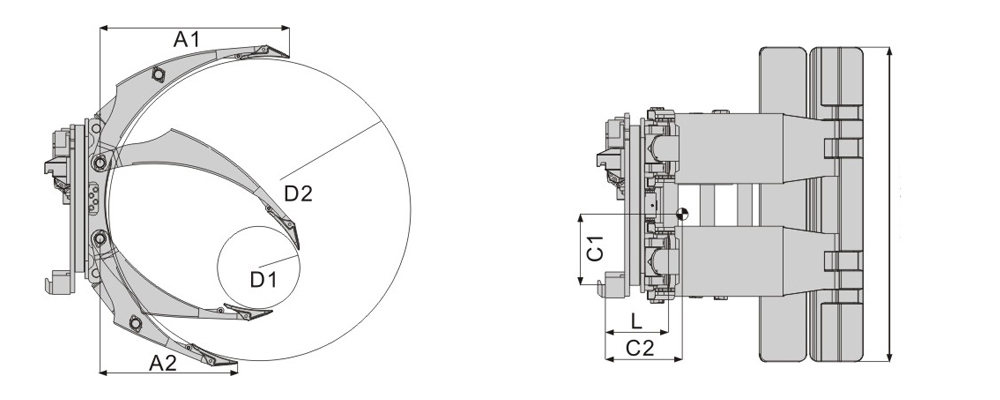

Model	Carrying Capacity	Frame dimension	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Verticla Center Gravity
	Kg	A1×A2(mm)	(mm)		Kg	L(mm)	C2(mm)	C1(mm)
TSC15A-G13C	1500	890-606	580-1350	2	800	246	287	353
TSC15A-G13F	1500	890-606	580-1350	2	840	246	287	354
TSC15B-G13C	1500	890-606	250-1350	2	820	246	287	353
TSC15B-G13F	1500	890-606	250-1350	2	860	246	287	354
TSC20A-G13C	2000	890-606	580-1350	2/3	818	248	328	358
TSC20A-G13F	2000	890-606	580-1350	2/3	858	248	328	359
TSC20B-G13C	2000	890-606	250-1350	2/3	838	248	328	258
TSC20B-G13F	2000	890-606	250-1350	2/3	878	248	328	259
TSC20A-G16C	2000	952-576	600-1600	2/3	837	252	328	258
TSC20A-G16F	2000	952-576	600-1600	2/3	877	252	328	259
TSC20B-G16C	2000	952-576	300-1600	2/3	857	252	328	258
TSC20B-G16F	2000	952-576	300-1600	2/3	897	252	328	259

Remarks:
1.Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2.The clamping and rotation are added with 1 more oil circuit each respectively.
3.A stands for fixed short arm, B, adjustable short arm, G, standard, C ,clamping plank size 1100mm, and F clamping plank size 1500mm.
4.The various types listed above are the common products, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
