Product Name: Bale Clamps E-Series

Bale Clamp

• Simple composite structure, high strength, light weight and being easy for maintenance;
• The inside of the splint is equipped with ribs to increase the friction coefficient, so as to easily clamp soft bales.
• Safety valves are equipped to prevent goods from dropping when the oil circuit releases pressure.
• The aluminum alloy frame reduces the dead weight of a product and increases the service life of the forklift..
• The selection of wearing strip of German Bayer’s material effectively prevents the guide axis and guide slot from abrasion due to sliding.
• The built-in side shifter increases lateral displacement, easy to operate.

Product Parameters

Inquiry

Product Parameters

Bale clamps cam be used to handle different types of bale goods such as rags,waste paper，cotton,wool,hay,industrial scraps etc,and can achieve high-effective and cost-efficient handling and stacking without a tray.

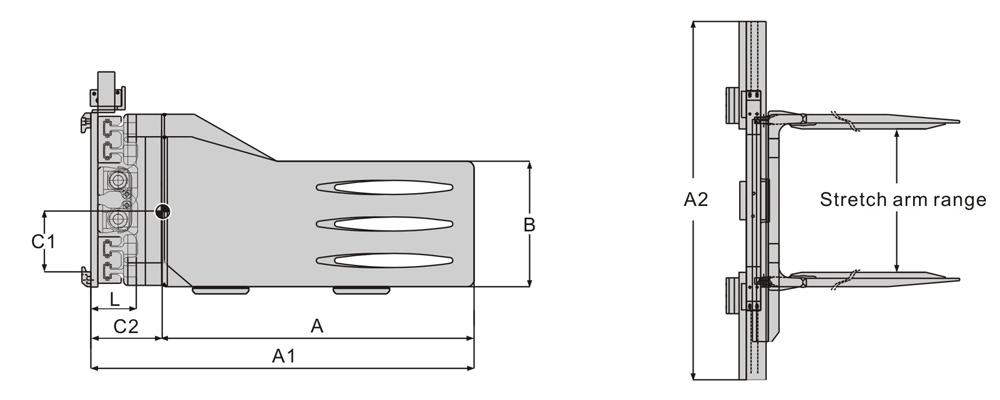

Model	Carrying Capacity	Frame dimension	Size of Clamp Size	Opening range	Installation Grade	Self-weight	Load Loss Distance	Horizontal Center of Gravity	Vertical Center of Gravity
	(Kg)	A1×A2(mm)	A×B(mm)	(mm)		(Kg)	L(mm)	C1(mm)	C2(mm)
SCM20A-E17A	2000	1170×1000	1000×490	580-1760	2	600	166	292	323
SCM20A-E19A	2000	1170×1100	1000×490	580-1900	2	620	166	293	325
SCM20A-E21A	2000	1170×1500	1000×490	500-2100	2/3	643	166	285	328
SCM20A-E22A	2000	1170×1500	1000×490	600-2200	2/3	648	166	285	328
SCM20B-E17A	2000	1170×1000	1000×490	580-1760	2	600	166	292	323
SCM20B-E19A	2000	1170×1100	1000×490	580-1900	2	620	166	293	325
SCM20B-E21A	2000	1170×1500	1000×490	500-2100	2/3	643	166	285	328
SCM20B-E22A	2000	1170×1500	1000×490	600-2200	2/3	648	166	285	328
SCM20A-E17C	2000	1370×1000	1200×490	580-1760	2	620	166	325	333
SCM20A-E19C	2000	1370×1100	1200×490	580-1900	2/3	640	166	324	333
SCM20A-E21C	2000	1370×1500	1200×490	500-2100	2/3	653	166	318	335
SCM20A-E22C	2000	1370×1500	1200×490	600-2200	2/3	668	166	318	335
SCM20B-E17C	2000	1370×1000	1200×490	580-1760	2	620	166	325	333
SCM20B-E19C	2000	1370×1100	1200×490	580-1900	2/3	640	166	325	333
SCM20B-E21C	2000	1370×1500	1200×490	500-2100	2/3	683	166	318	335
SCM20B-E22C	2000	1370×1500	1200×490	600-2200	2/3	690	166	318	335
SCM25A-E19A	2500	1175×1200	1000×490	550-1900	3	670	175	293	325
SCM25A-E21A	2500	1175×1500	1000×490	500-2100	3	693	175	285	328
SCM25A-E22A	2500	1175×1500	1000×490	600-2200	3	710	175	285	328
SCM25B-E19A	2500	1175×1200	1000×490	550-1900	3	670	175	293	325
SCM25B-E21A	2500	1175×1500	1000×490	500-2100	3	693	175	285	328
SCM25B-E22A	2500	1175×1500	1000×490	600-2200	3	710	175	285	328
SCM25A-E19C	2500	1375×1200	1200×490	550-1900	3	705	175	345	333
SCM25A-E21C	2500	1375×1500	1200×490	500-2100	3	730	175	330	335
SCM25A-E22C	2500	1375×1500	1200×490	600-2200	3	735	175	330	335
SCM25B-E19C	2500	1375×1200	1200×490	550-1900	3	705	175	345	333
SCM25B-E21C	2500	1375×1500	1200×490	500-2100	3	730	175	330	335
SCM25B-E22C	2500	1375×1500	1200×490	600-2200	3	735	175	330	335

Remarks:
1. Please get the actual comprehensive bearing capacity of forklifts and their attachments from the factory.
2. The clamping and side shifting are added with one more oil circuit respectively.
3. A stands for standard, B, side shifting, E, the fifth generation product, and A and C, clamp arm length.
4. The various types listed above are the common products of Sino-German Nnookee, and other types of products can also be supplied in accordance with different brands of forklifts and special working conditions.
